ALNOPLAN MODULAR PARTITION WALLS - G50

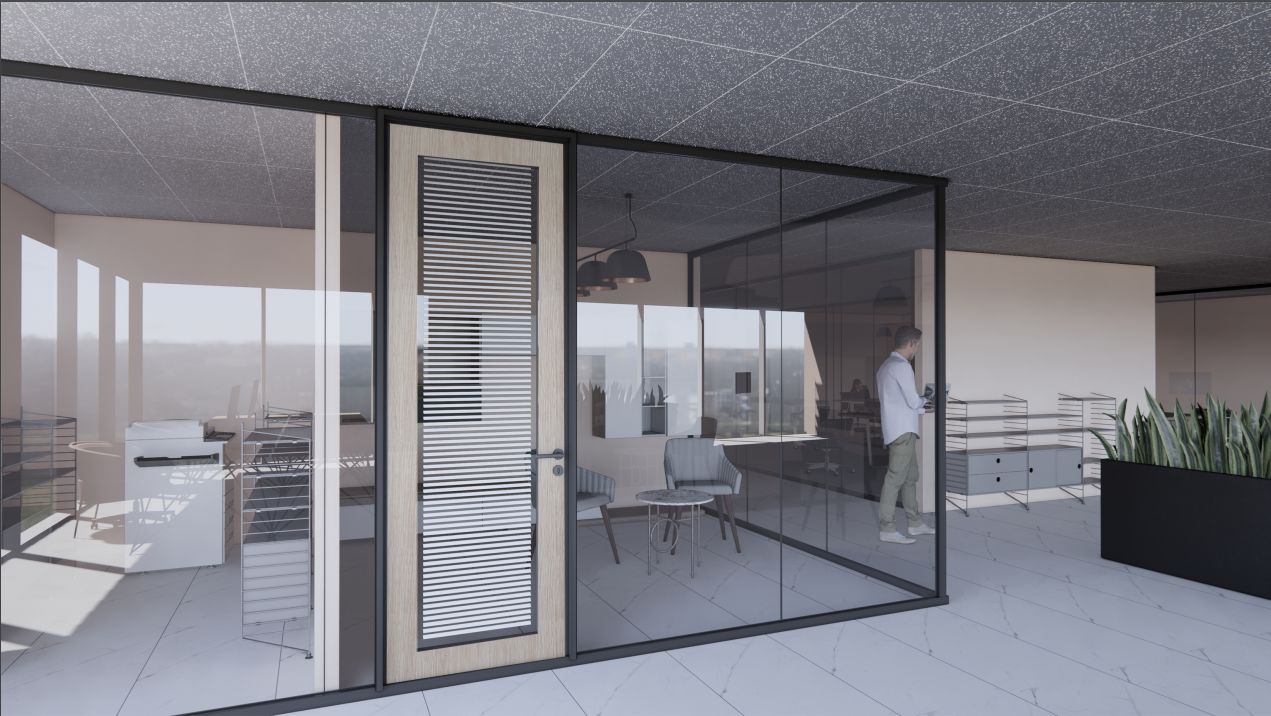

Alnoplan G50 system is a 50 mm thick, vertical non-profiled partition wall system with single glazed glass-to-glass combination. There are no vertical carrier and glass profiles between the glasses. A thin transparent polycarbonate lath with 3M adhesive tape on both sides or thin aluminum lath is used between the glasses, so that the environments are transparent, fully open to daylight and integrity is ensured within the workplace.

Thin transparent polycarbon lath or thin aluminum lath with double-sided 3M adhesive tape is used between the glasses in corner turns and T joints.


System thickness 50 mm Glass combination Clear polycarbonate glass to glass adhesive lath or aluminum joint profile with 3M double-sided adhesive acrylic foam tape System weight Approx. 25 kg / m2 Dimensions Units of special width and length depending on the architectural design concept (standard one-piece unit size max. 1.000 x 3.000 (h) mm) Construction Among the glazed units, it is a system without a carrier profile, and the steel carrier profile is located between the glass unit - the door frame and the full modules. Glass Unit 10 mm tempered / laminated glass - 8 mm tempered / laminated glass Glass surface Film coated glass, extra clear glass Aluminum surface E6 / EV1 natural anodized, colored anodized or electrostatic powder in the desired RAL color painting (75 micron) Door Frame 2 mm thick, 25 mm aluminum framed door unit (fitted on the door leaf and lock) Door leaf Wooden door leaf, glass door leaf, framed glass door leaf Wooden Door leaf 40mm wooden door leaf with natural polished leaf edges on hardwood (natural wood, HPL laminate, MDFlam coated or lacquered) Glass Door leaf 10 mm tempered or 5 + 5 mm laminated tempered glass door leaf Door accessories It varies according to the architectural design concept. (arm, lock, cylinder imported compact set) Ground adjustment A steel floor adjuster is used. The concept The location (school, hospital, office, hotel & restaurant, bank, congress & meeting area) varies according to the function.
